Product Description
Item No : AW016
Material : ADC12
Size : 160 * 100 * 65 mm
Weight：694 g
Color：Gray
IP RATING：IP67
PDF :

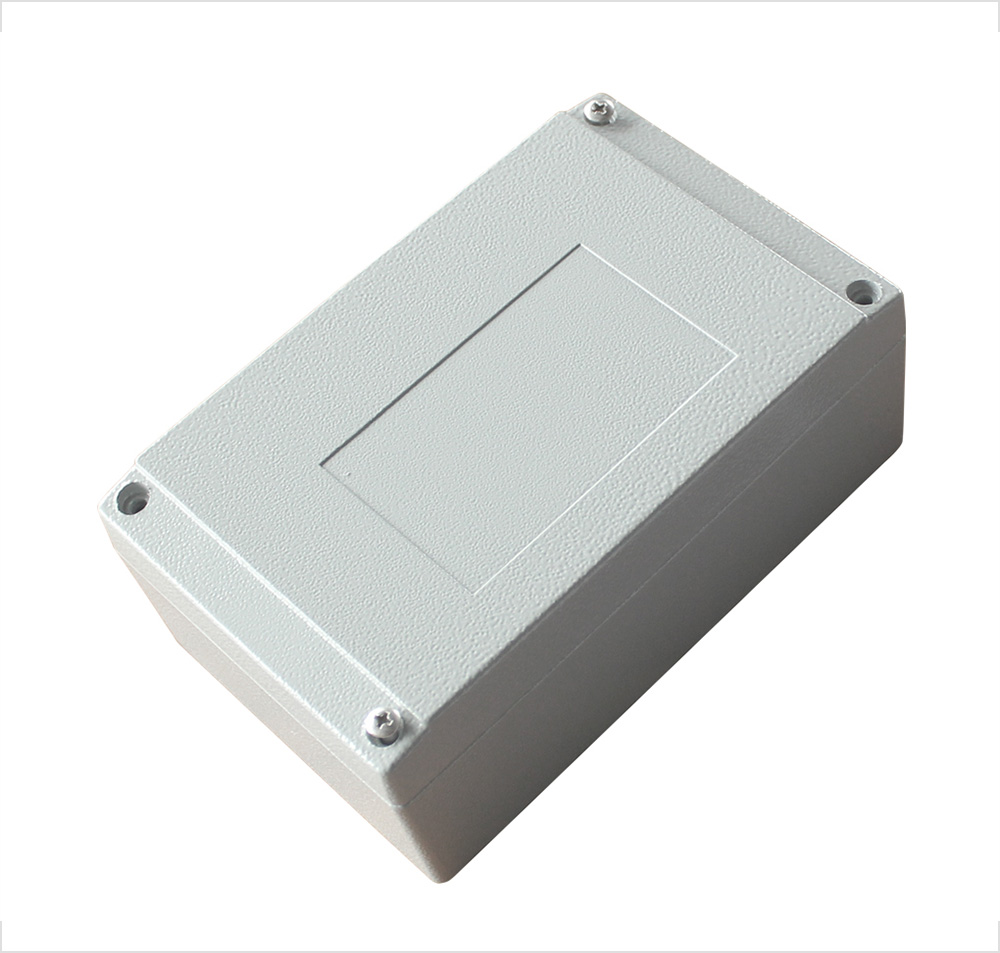

1.Die-casting Al alloy enclosure,with the matte surface;
2.IP67 Rating;
3.Operating Temperature : -40℃ to 120℃;
4.Radio frequency interference resistance,easy tooling;
5.External mounting brackets allow the box to be mounted on the wall or panels.

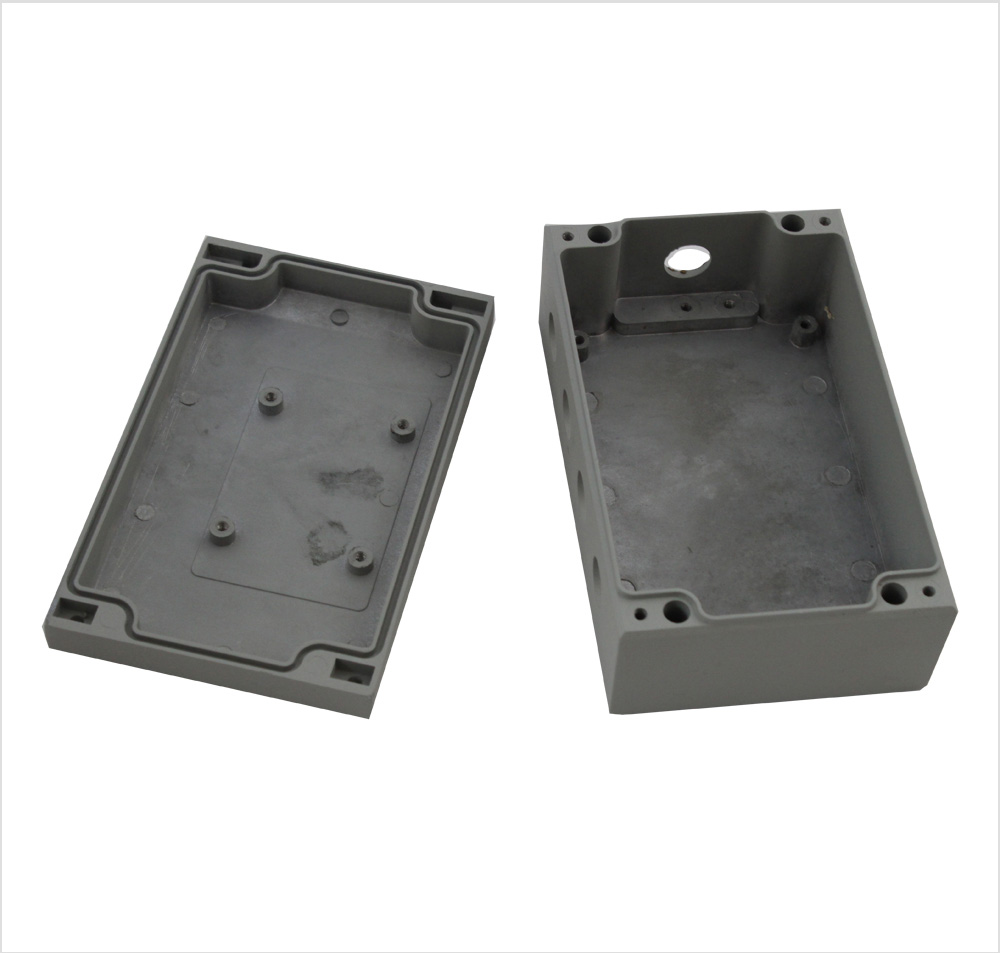

| PARTS | ||||
| S/N | PART NAME | QTY | METERIAL | REMARKS |
| 1 | COVER | 1 | AL |
|
| 2 | BASE | 1 | AL |
|
| 3 | SEALING | 1 | SILICON |
|
| 4 | SCREW | 4 | SS |
|
1.Color can be customized(need samples),but we have MOQ;
2.Material can be changed ,such as adding flame retardant,antistatic agent;
3.Modifications can ben done ,such as drilling holes,adding or changing PCB pillars(not free in charge);
4.All the products are designned under the regulations of certain protections,but we don’t provide the certificates;
5.For some special requirements,please contact us in advance,and describe this in the PO;
6.Because of revising and updating,technic data may not be updated on time,please get the confirmation before order;
7.Welcome to DEVELOP NEW MOULD with us，including OEM !
