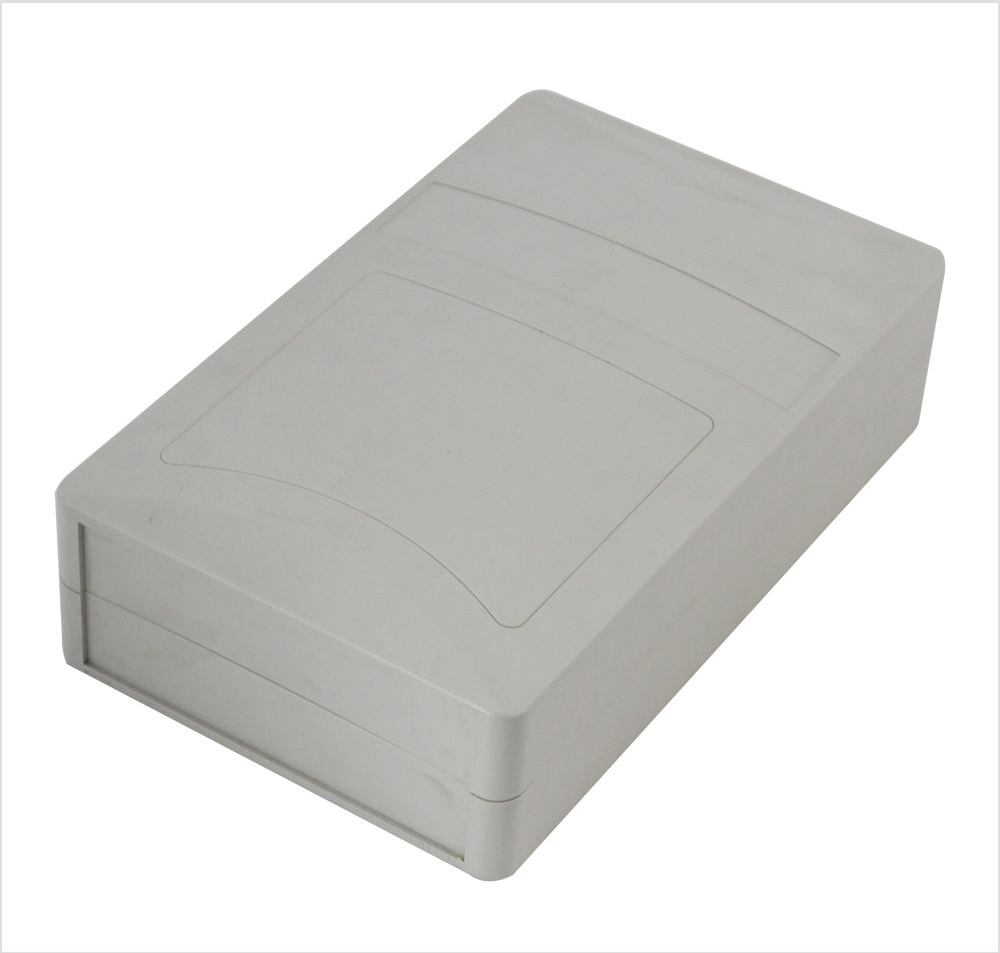

Product Description
Item No : PC055
Material : ABS/PC
Size : 230 * 142 * 64 mm
Weight : 349 g
Color : Light gray
PDF :
1.Material: High impact ABS;
2.Operating Temperature:-20℃ to 90℃;

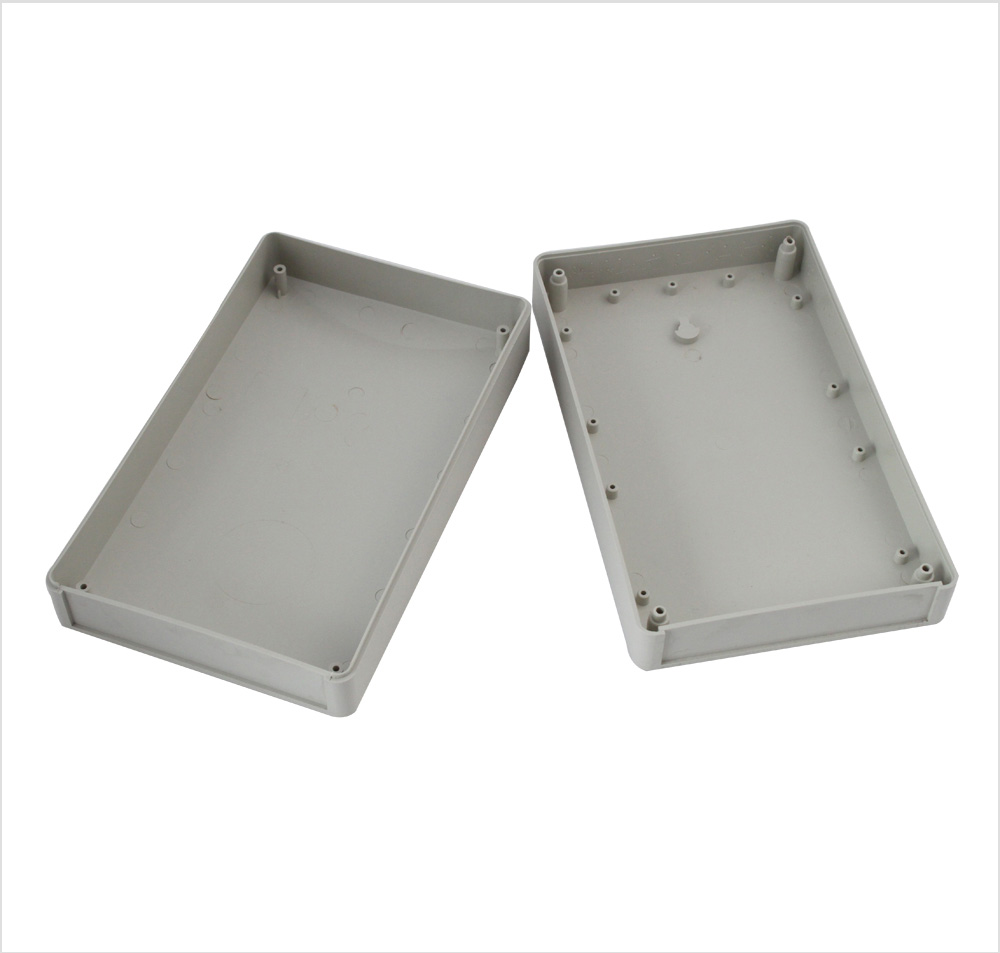

3.Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass inserts;
4.Widely used in communication,photo-electric,safety,instruments and meters.
| PARTS | ||||
| S/N | PART NAME | QTY | METERIAL | REMARKS |
| 1 | COVER | 1 | ABS |
|
| 2 | BASE | 1 | ABS |
|
1.Color can be customized(need samples),but we have MOQ;
2.Material can be changed ,such as adding flame retardant,antistatic agent;
3.Modifications can ben done ,such as drilling holes,adding or changing PCB pillars(not free in charge);
4.All the products are designned under the regulations of certain protections,but we don’t provide the certificates;
5.For some special requirements,please contact us in advance,and describe this in the PO;
6.Because of revising and updating,technic data may not be updated on time,please get the confirmation before order;
7.Welcome to DEVELOP NEW MOULD with us，including OEM !
