    Product Description

    Item No : AW001

    Material : ADC12

    Size : 280 * 186 * 71 mm

    Weight:1,326 g

    Color:Gray

    IP RATING:IP67

    PDF :

    Previous: Nothing!

    Next: AW002

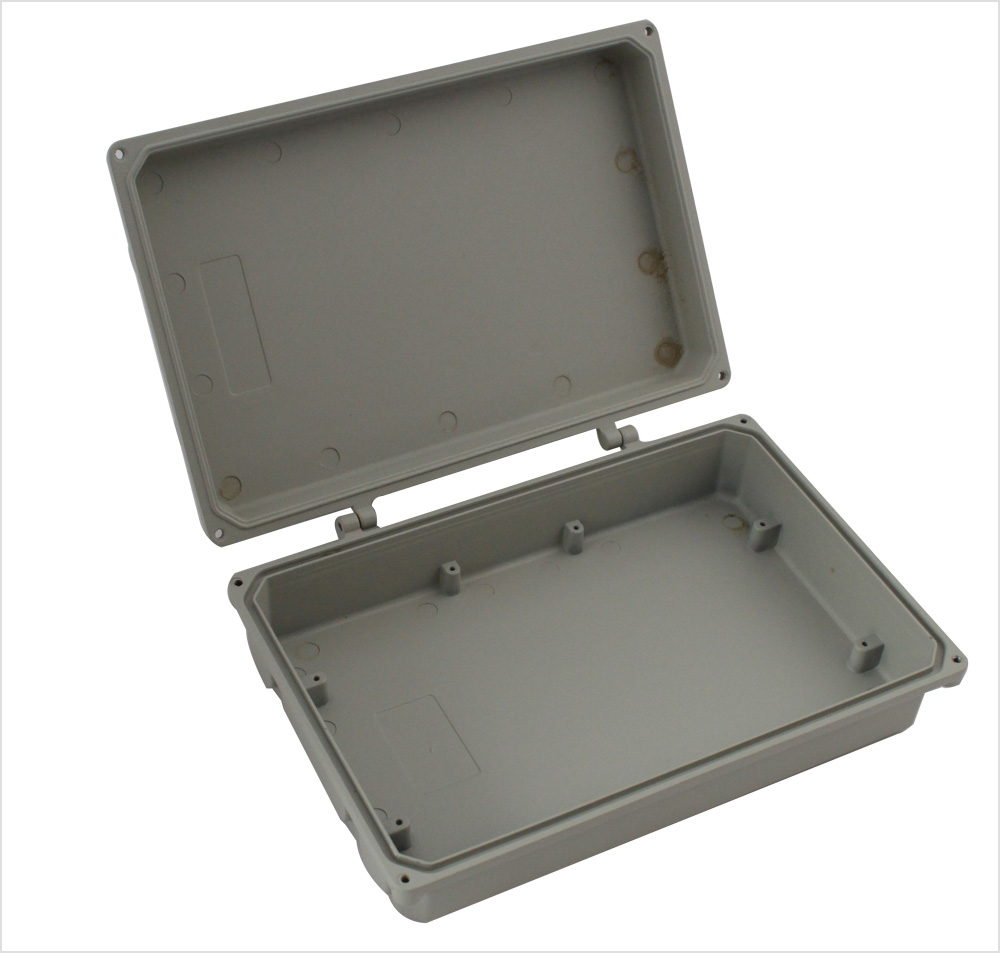

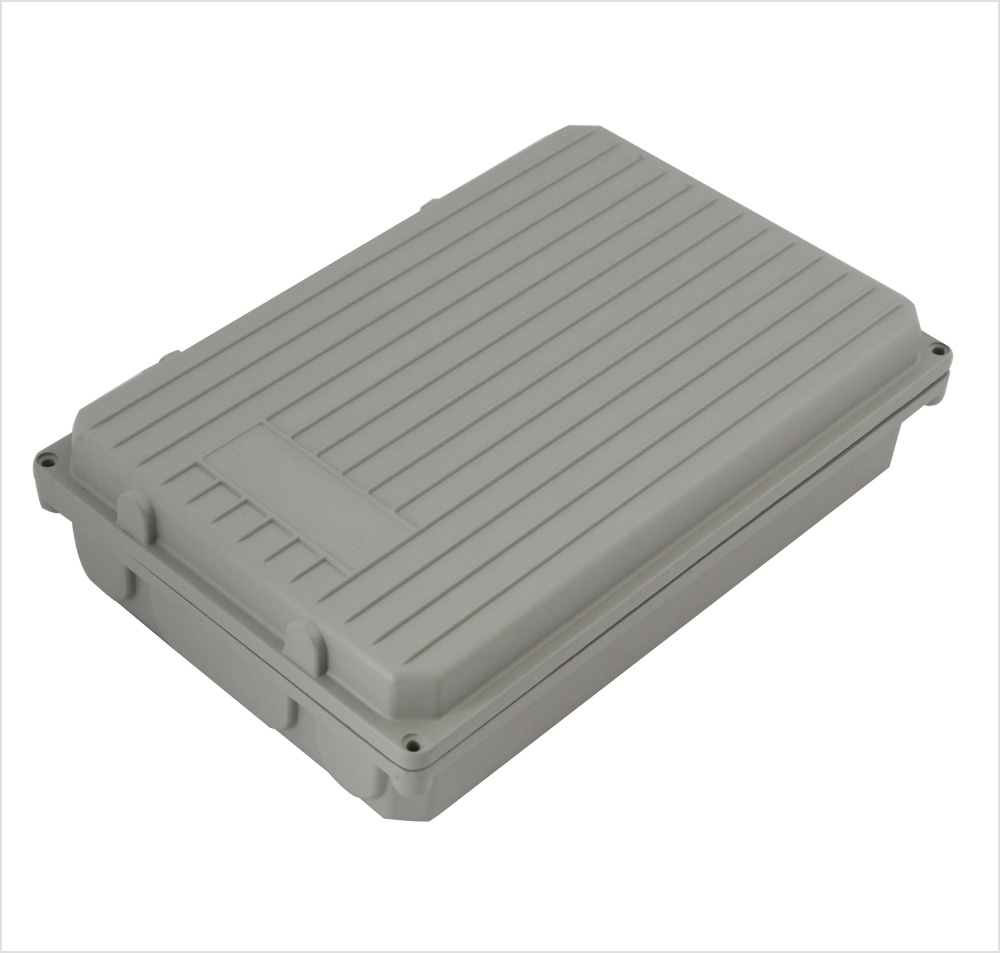

    1.Die-casting Al alloy enclosure,with the matte surface;
    2.IP67 Rating;
    3.Operating Temperature : -40℃ to 120℃;
    4.Radio frequency interference resistance,easy tooling;
    5.External mounting brackets allow the box to be mounted on the wall or panels.

    PARTS
    S/N PART NAME QTY METERIAL REMARKS
    1 COVER 1 AL
    2 BASE 1 AL
    3 SEALING 1 SILICON
    4 SCREW 4 SS

    1.Color can be customized(need samples),but we have MOQ;
    2.Material can be changed ,such as adding flame retardant,antistatic agent;
    3.Modifications can ben done ,such as drilling holes,adding or changing PCB pillars(not free in charge);
    4.All the products are designned under the regulations of certain protections,but we don’t provide the certificates;
    5.For some special requirements,please contact us in advance,and describe this in the PO;
    6.Because of revising and updating,technic data may not be updated on time,please get the confirmation before order;
    7.Welcome to DEVELOP NEW MOULD  with us,including OEM !
