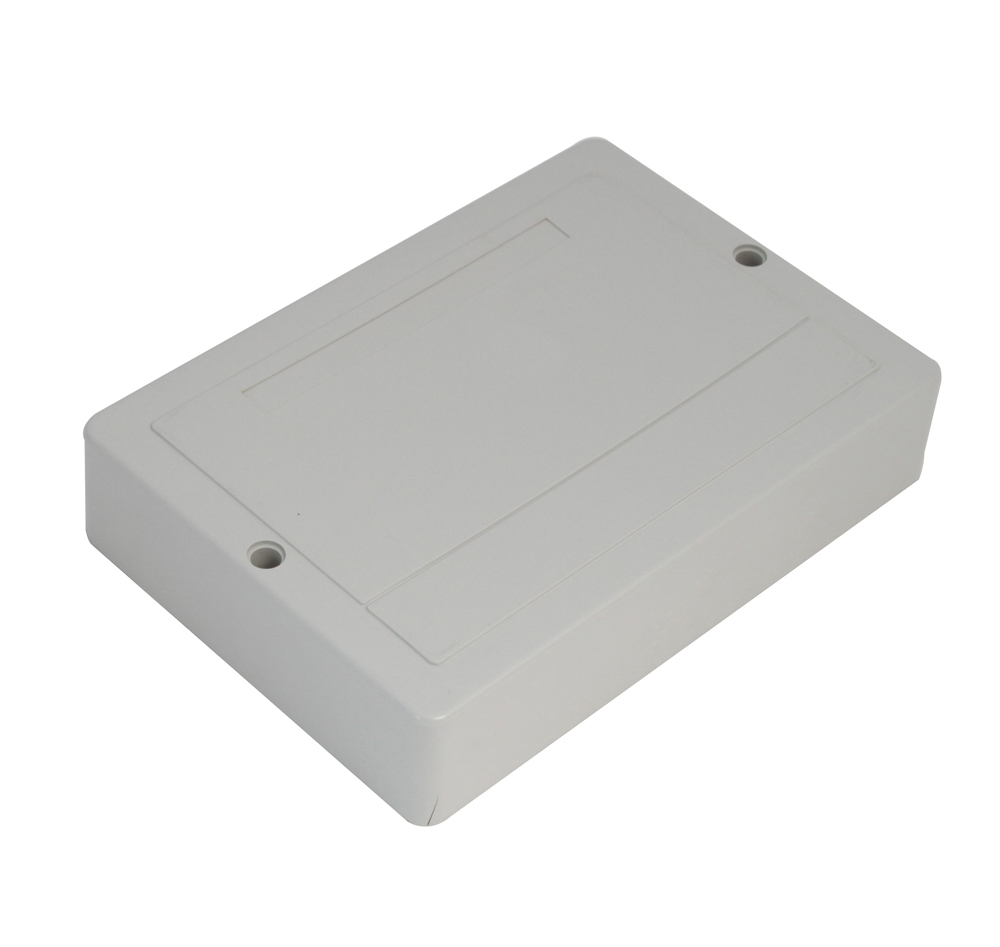

    Product Description

    Item No : PW050

    Material : ABS/PC

    Size : 200 * 140 * 41 mm

    Weight : /

    Color : Gray white

    IP RATING : IP65

    PDF :

    Previous: PW049

    Next: PW051

    1.Material: High impact ABS;

    2.Operating Temperature : -20C to 60C;

    3.Protection level: IP65 of IEC 529 ; The lid and base incorporate a tongue and groove sealing system with a

    silicon gasket ;better anti-corrosion performance.

    4. Bosses on internal base allow fixing PCB horizontally or connection of terminals, etc into threaded brass

    inserts

    5. Lid fixing screw are stainless steel (non-magnetic) into threaded brass inserts.

    1.Color and material can be changed as your interesting;

    2.Certain modification can be done according to your requirments; such as drilling, painting, punching,

    silk-screen printing and etc;

    3.Delivery term: Airfreight,Seafreight and Express are all available.

    4.Your design is welcome,the mould fee can be offset when future order reaches a certain amount;

    PARTS

    S/N

    PART NAME

    QTY

    METERIAL

    SEPCIFICATION

    1

    COVER

    1

    ABS

    PC Transparent Lid Available

    2

    BASE

    1

    ABS


    3

    SEALING

    1

    SILICON


    4

    SCREW

    4

    IRON NICKEL PLATING


    This series enclosure is widely applied in connection boxes, module cases, control boxes and other types of electronics.

    We offer hundreds of plastic enclosures are available with different sizes.
